After being officially presented at Cannes Yachting Festival, our A80 was exhibited at Monaco Yacht Show (23-26 sept, 2015) together with A44.
Advanced Italian Yachts, to design the flagship of its line, confirmed the successful team already engaged for their A66: the american naval architects John Reichel and Jim Pugh of Reichel/Pugh and the Italian yacht designers Mario Pedol and Massimo Gino of Nauta Yachts.

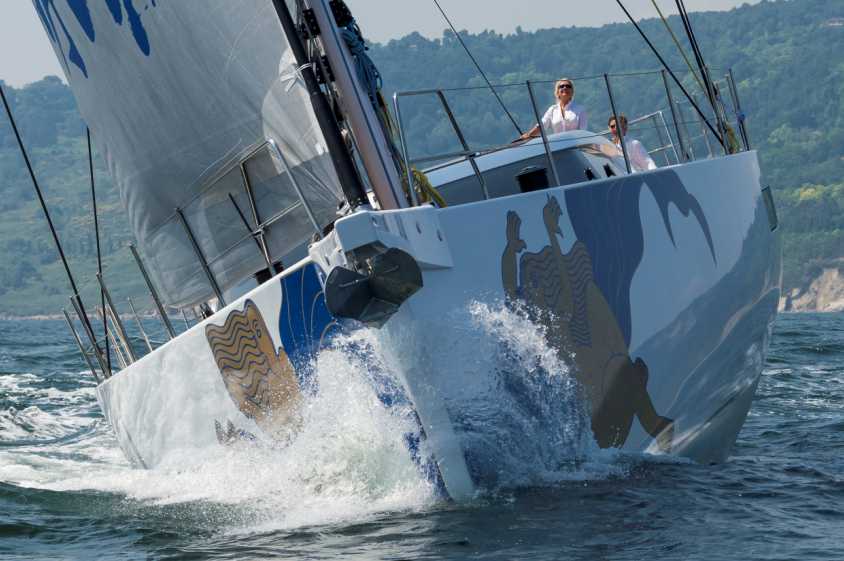

The innovative A80 hull shape met the team’s goals for top performance and wide volumes. The rudder shape and fin profile are the result of state-of-the-art research for performance, control and easy handling in any weather condition. The development and optimization of the Advanced A80 hull shape benefits from Reichel/Pugh’s experience designing the most competitive yachts on the international racing circuit today. Their state-of-the-art design tools have been developed in-house over 30 years of racing yacht design and are used to optimize hull shapes, appendages and rig design.

Comfort, elegance and performance inspired the Advanced A80 design. Large aft volumes and deck geometries speak of speed, efficiency and modernity.

A main characteristic of Advanced Italian Yachts is the search for complete integration between the inside and the outside. With the A80, thanks to a glass window deck house, you can experience intense brightness while enjoying an all around view of the outside, a feature that usually big motor boats only have.

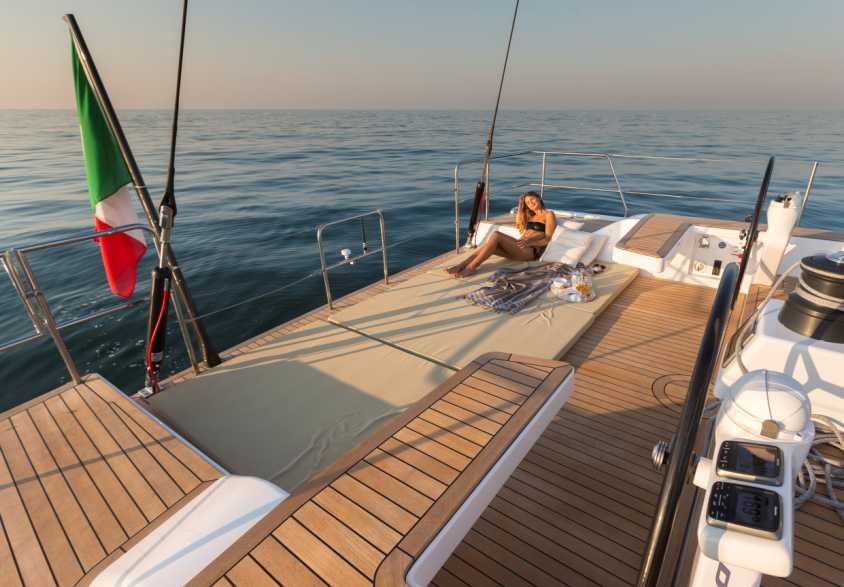

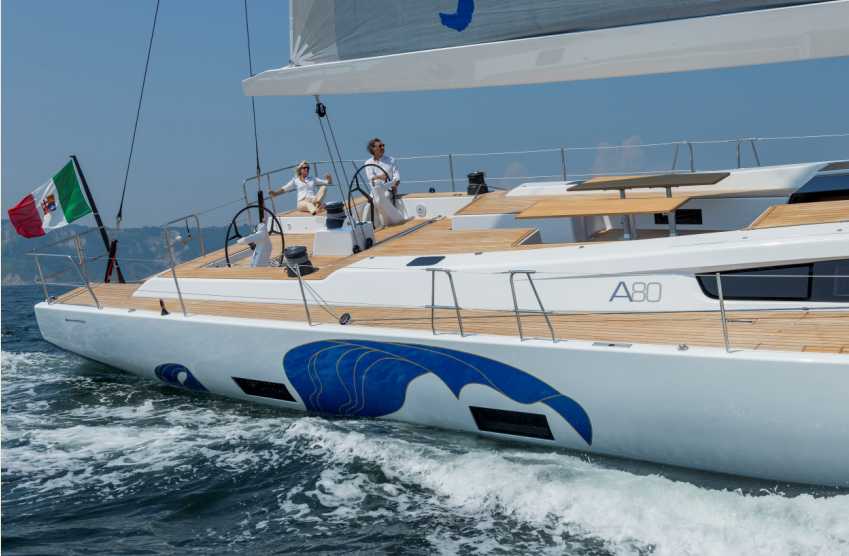

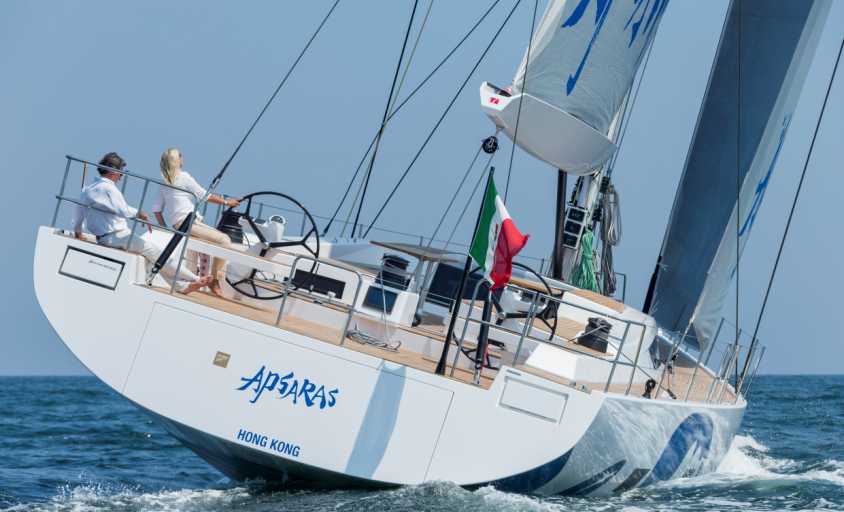

An oversize aft deck offers different areas to owners and guests: a dining cockpit with two sofas and extendable tables, a relaxation area close to the manoeuvring area and a sunbathing area to the stern. The deck of this entire surface is on a continuous level with no steps, bulky superstructures or obstacles to movement fore and aft. All this without affecting the generous roominess below deck.

The A80’s streamlined coachroof is a Nauta Design trademark while her beamy hull has large interior volumes where designers Mario Pedol and Massimo Gino planed three roomy layouts to satisfy the requirements of experienced owners.

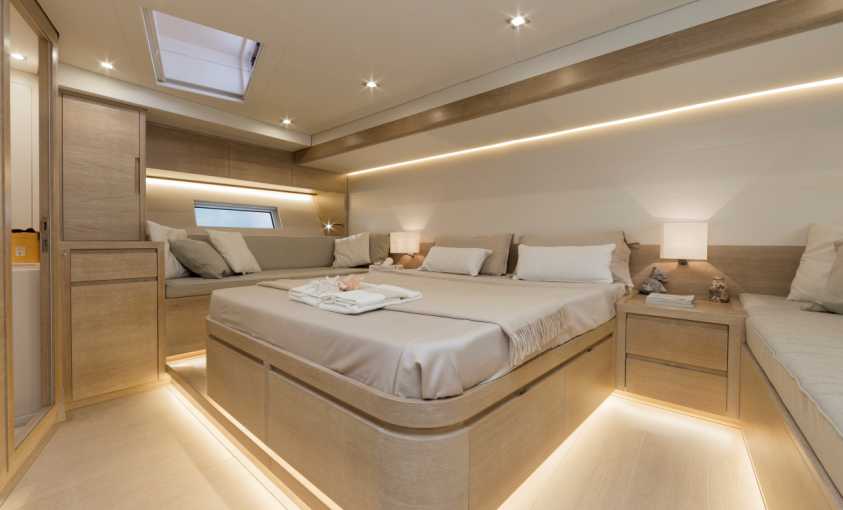

Hull number one will have the owner’s suite aft configuration where a full beam cabin with a splitted bathroom features a centrally placed king-sized bed and two side sofas beds. This flexible space can be cleverly divided to obtain two smaller cabins.

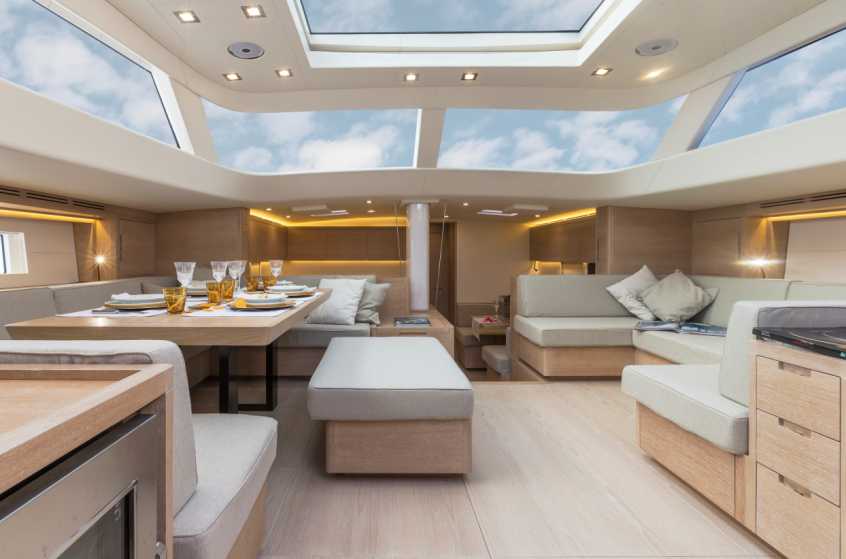

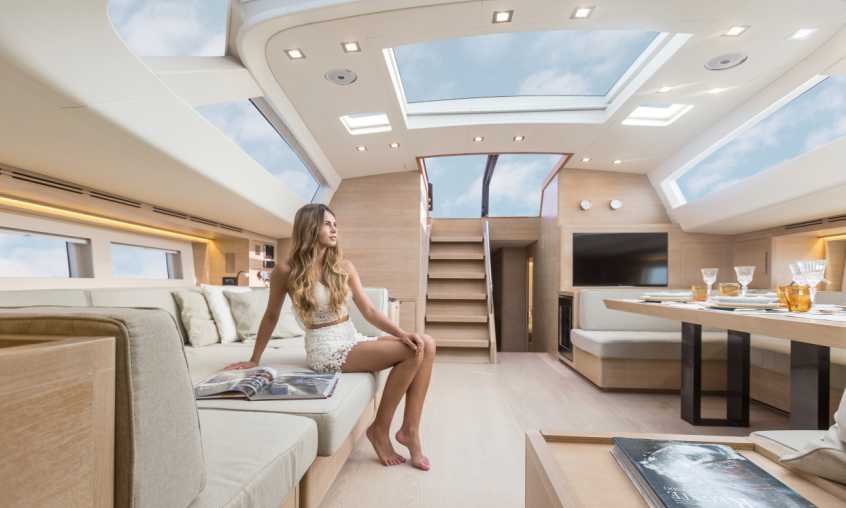

Twin en suite guest cabins are midships. The full beam saloon is flooded by light through skylights and four large windows offer magnificent sea views. Layout features a large dining area port and a living area starboard. Galley and crew quarters are forward and feature a crew mess and two crew cabins. Other options include two versions of an owner’s suite with walk-in closet forward configuration. One version has galley, chart table and two crew cabins aft, the other has an American style open galley amid-ships, close to the saloon with two guests cabins and one double crew cabin aft.

The Advanced A80 uses the most innovative and advanced construction materials and techniques. Sandwich panels with fibreglass and carbon reinforcements are impregnated with epoxy resins infused under vacuum and reinforced with unidirectional carbon fibre in high load areas. Moreover, to increase hull stiffness and save weight in the upper area, improving stability, it has been chosen a full carbon deck. Both hull and deck are made from female moulds for a very light, stiff hull with perfect surface finishing. Our production process guarantees performance and durability.





TECHNICAL DETAILS

LOA - LENGTH OVERALL - 23.98 m
LWL - WATERLINE LENGTH - 21.60 m
MAX BEAM - 6.20 m
DRAFT - fixed keel 3.50 m
DISPLACEMENT - 39.700 kg (light)
BALLAST - ca.11.780 kg (fixed keel)
SAIL PLAN (indicative) -
I = 30.20 m
J = 8.40 m
P = 29.40 m
E = 10.80 m
SAIL AREA 100% (indicative) ca. - 326 m2
BUILD MATERIAL -
Sandwich with fibreglass and carbon
reinforcements under vacuum epoxy
resin and reinforcements in high fatigue areas.
ENGINE - YANMAR 4LHA DTP 230 HP @ 3300 RPM
FUEL TANK - 2.000 l
WATER TANK - 1.300 l
DESALINATOR - 1 x Shenker Modular ca. 150 l/h, 220V
(OPTIONAL)
GENERATOR - Onan 17.5 kW QD MDKBN 50 Hz
(OPTIONAL)
SERVICE BATTERIES - 1200Ah 24V (12 x 12V, 200 Ah)
GENERAL CONCEPT - Advanced Yachts
GENERAL PLANS, INTERIOR AND
EXTERIOR STYLING - Nauta Yachts
DESIGNER - Reichel-Pugh Yacht Design
STRUCTURAL ENGINEERING - Sp Gurit

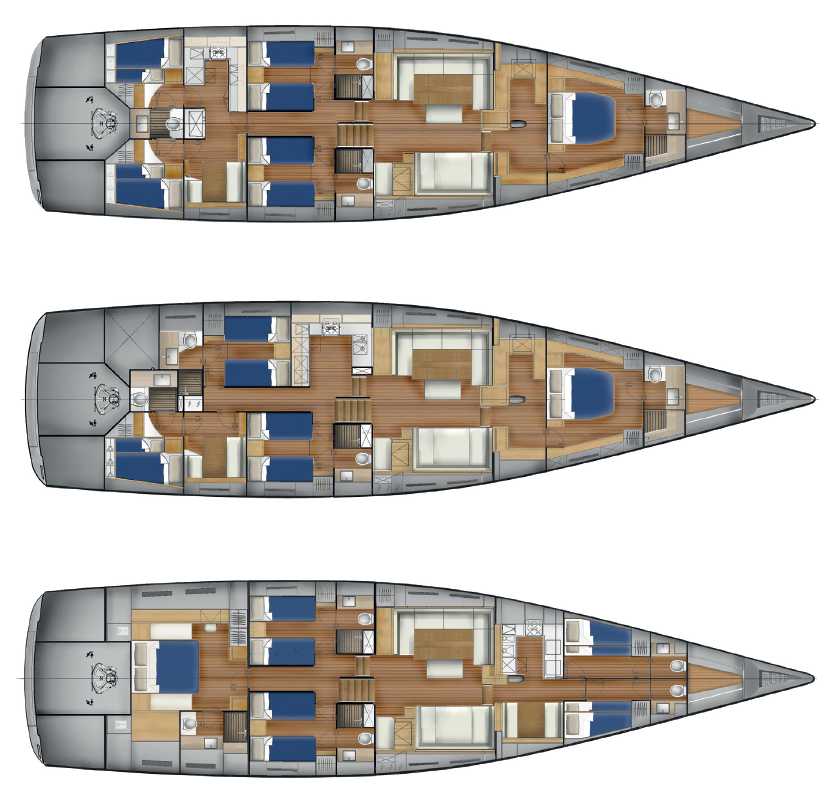

LAYOUTS
